Pre-Wired XT60 Pigtail with 12AWG Cable: When Soldering Is Not Worth the Trouble

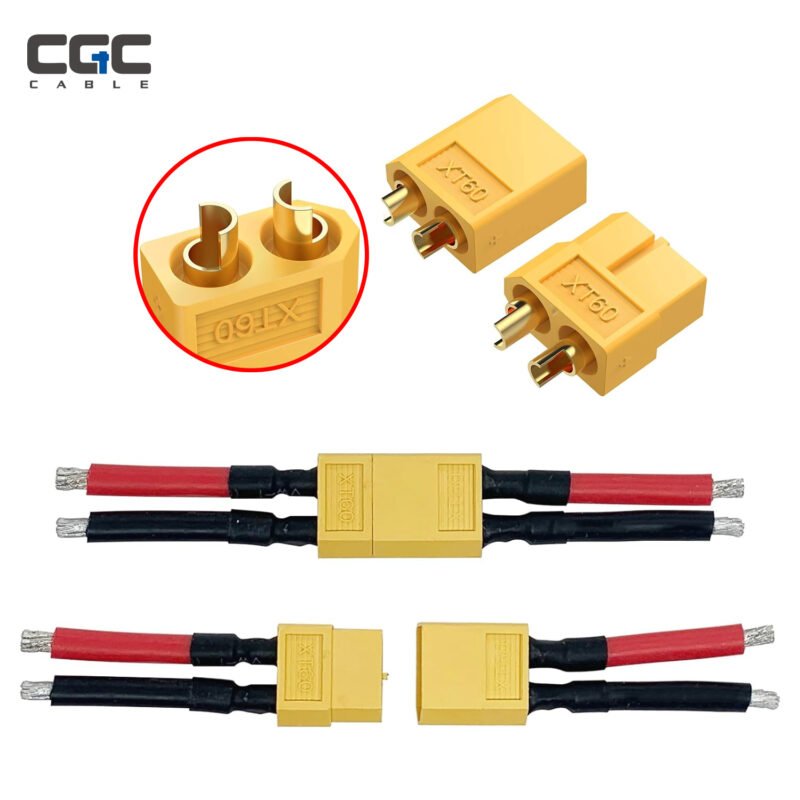

| Crimping and soldering your own XT60 leads is fine when you enjoy it. When you just want the thing to work, a pre-wired pigtail is the smarter buy. 🔌 What a pre-wired XT60 pigtail gives you: The connector is already soldered to 12AWG silicone wire, with the joint finished and insulated. You wire the free ends to your ESC, battery, or charger instead of soldering the connector itself. One less fiddly soldering job, one less chance of a cold joint at a high-current point. ⚡ Why the cable gauge matters: 12AWG is the practical choice for most RC power wiring. Thinner wire adds resistance that shows up as heat and voltage sag under load. For typical quadcopters and RC cars pulling 30-50A, 12AWG with a 50mm lead keeps the run short and losses low. 🔍 What to check when buying pigtails: The wire should be genuine silicone insulation (flexible, heat-tolerant), the solder joint should be clean and fully covered, and the polarity should be obvious — red to positive, black to negative. A poorly finished pigtail at a battery connector is a short-circuit risk. 🛒 When to choose a pigtail over bare connectors: whenever the cable run is short and fixed, or when you want a neater install without exposed solder work. 🔗 CGCCable has 3 pairs of pre-wired XT60 pigtails with 12AWG cable — a plug-and-play option for battery replacement and wiring tidy-ups. 👉 Shop Here: https://cgccable.com/product/xt60-connector-32558 #CGCCable #XT60 #RCelectronics #dronebuild #LiPo #DIYdrones #RCguide |
