XT60H Connectors: A Guide to the RC Hobby Standard Plug

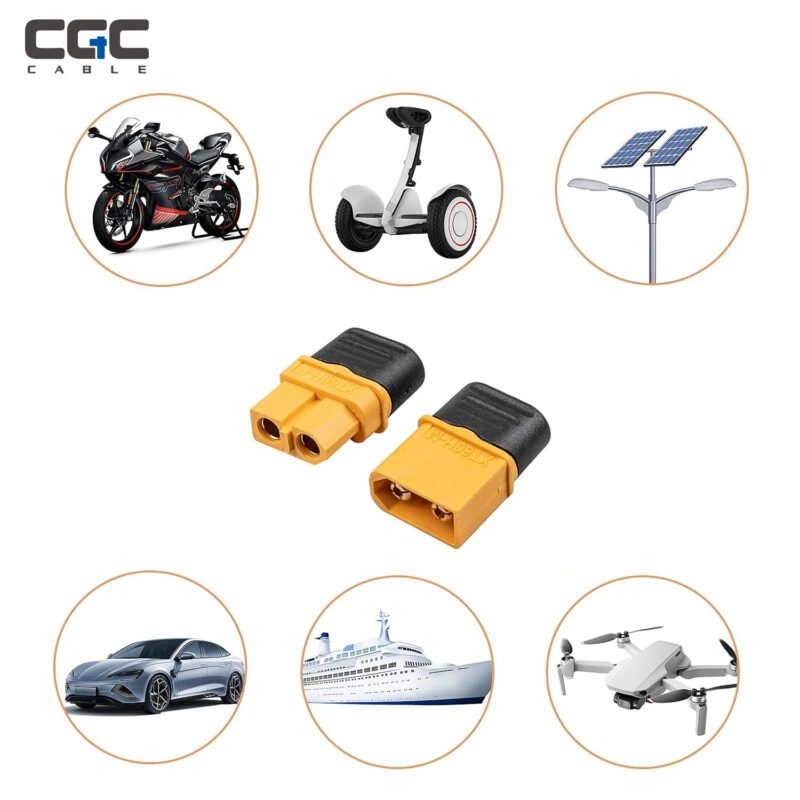

| In the RC world, connector choice affects battery compatibility, charging, and in-field reliability. The de facto standard is XT60. 🔌 Why XT60 won: The keyed nylon housing only plugs in one direction — you cannot reverse polarity by accident. Older Deans-style plugs have exposed solder tabs that can touch and short if you are not careful. XT60 recesses its gold-plated bullets inside the housing, protected from dirt, debris, and accidental contact. 🔍 The ‘H’ in XT60H: It indicates a higher-amperage variant. The standard XT60 is rated around 60A; the H version is built to handle sustained loads more comfortably with heavier contacts. For most 3S-6S LiPo builds drawing under 50A, either works; above that, the H variant gives useful thermal headroom. 🛡️ Installation rule: the male connector (exposed pins) goes on the battery side, the female (recessed sockets) on the ESC or device side. This prevents accidental shorts when handling loose batteries. Heat-shrink over the solder joints adds strain relief and insulation. 🛒 Why buy multi-pairs: Standardizing your whole fleet on one connector eliminates the adapter nightmare — no more carrying four different adapter cables to the field. 🔗 CGCCable offers 10 pairs of XT60H connectors with sheaths — enough to standardize batteries and ESCs across your RC fleet. 👉 Grab Yours Today:https://cgccable.com/product/xt60-connector-32543 #CGCCable #XT60 #RCelectronics #dronebuild #LiPo #DIYdrones #RCguide |
